Scale:
1:2
Drawn:
Date:
Edited:
Date:
ASEE
03.02.2014
Your choice in railing systems
Article:
Easy Glass Pro Y
Project:
fascia mount
MOD:
6916
Detail:
6916-002
This drawing and design are the sole property of Q-railing Europe GmbH & Co.
KG.
Any reproduction in part or as a whole and forwarding to unauthorised third parties
without the permission of Q-railing is prohibited.
19
1
7
1
2
3a
3b
3c
4
6

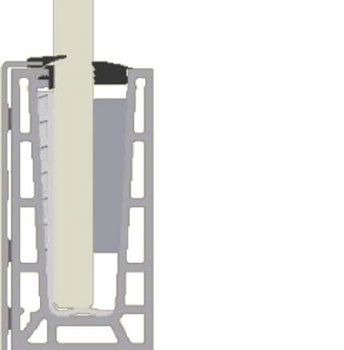

1. profile Easy Glass Pro Y
2. glass 12mm- 21,52mm
3. rubber-set, fix
a.
inlay (ABS)
b.
safety wedge (ABS)
c.
rubber (EPDM)

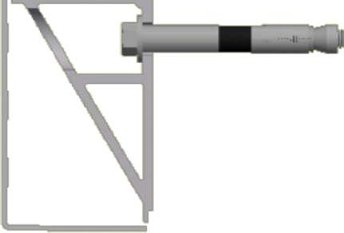

4. anchor no.
19.4712.110.xx
(or comparable anchor)
5. cladding (Al)

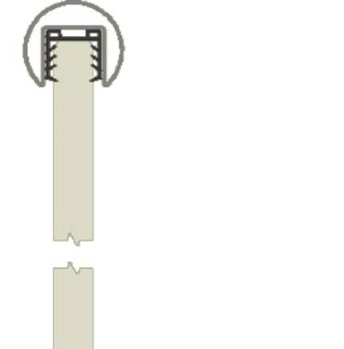

6. cap rail
42,4mm
(more cap rail options see
detail drawing 6920/6945)
ffl
11
5
,
5
2
2
0
64
5
3,5
1
5
0
0
drainage hole
6
5
m
i
n
.
m
a
x
.
7
0
