Scale:
1:2
Drawn:
Date:
Edited:
Date:
ASEE
31.01.2014
Your choice in railing systems
Article:
Easy Glass Pro F
Project:
top mount
MOD:
6909
Detail:
6909-001
This drawing and design are the sole property of Q-railing Europe GmbH & Co.
KG.
Any reproduction in part or as a whole and forwarding to unauthorised third parties
without the permission of Q-railing is prohibited.
87
19
12
0
,
5
60
1
7
1
2
3a
3b
3c
4
5

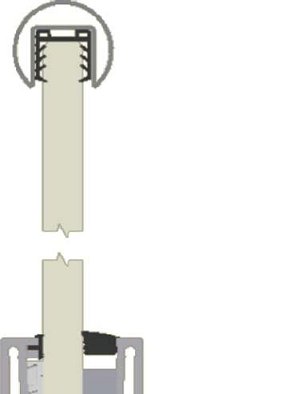

1. profile Easy Glass Pro F
2. glass 12mm - 21,52mm
3. rubber-set, fix
a.
inlay (ABS)
b.
safety wedge (ABS)
c.
rubber (EPDM)

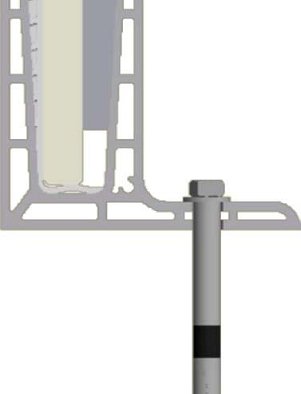

4. anchor no.
19.4712.130.xx
(or comparable anchor)
5. cap rail
42,4mm
(more cap rail options see
detail drawing 6920/6945)
ffl
1
5
0
0
3,5
drainage hole
