Scale:
1:2
Drawn:
Date:
Edited:
Date:
ASEE
04.02.2014
Your choice in railing systems
Article:
Easy Glass Pro
Project:
top mount
MOD:
6906
Detail:
6906-004
This drawing and design are the sole property of Q-railing Europe GmbH & Co.
KG.
Any reproduction in part or as a whole and forwarding to unauthorised third parties
without the permission of Q-railing is prohibited.
12
2
60
17
1
2
5
3a
3d
4
ffl

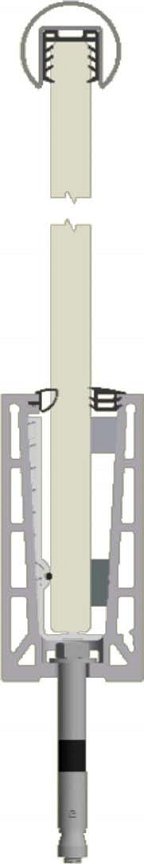

1. profile Easy Glass Pro
2. glass 12mm - 21,52mm
3. rubber-set, adjustable
a.
inlay (ABS)
b.
safety wedge top (ABS)
c.
safety wedge bottom (ABS)
d.
rubber (EPDM)
4. anchor no.
19.4712.110.xx
(or comparable anchor)
5. cap rail
42,4mm
(more cap rail options see
detail drawing 6920/6945)
2
0
,
5
3b
3c
o
1
n
3,8
1
5
0
0
min.
60
drainage hole
